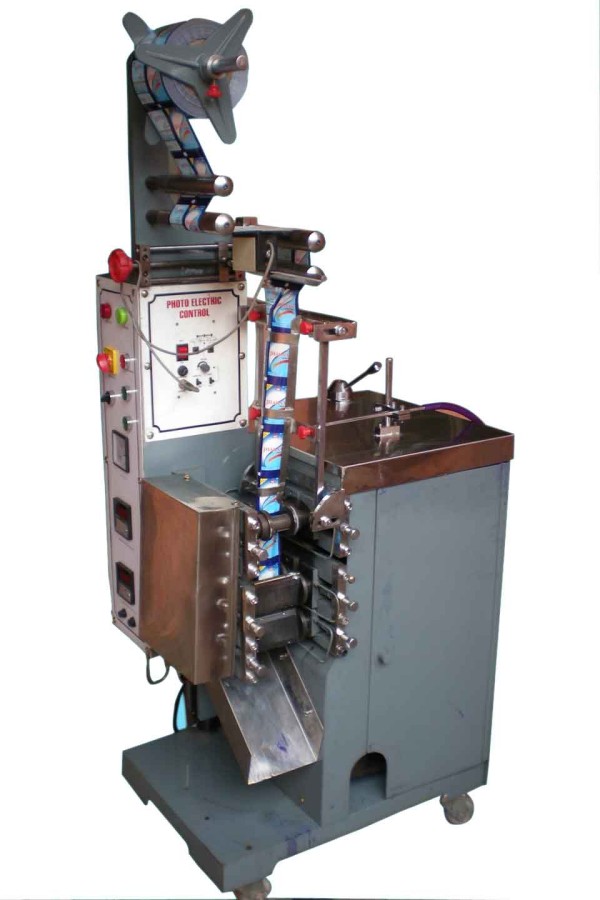

FFS Packaging Machine – Liquid & Semi-Liquid

Weight to be packed
:2ml -200 ml (Liquid)
Roll Width
:60mm (Min) – 350mm (Max.)
Repeat Length
:40mm – 200mm
Machine speed
:35 – 40 PPM
Pouch Type
:3 side seal / 4 side seal
Power Supply & Consumption
:220VAC, Single Phase. 50 Hz
Consumption
:2.5 to 3.0 KW.
Pulling Mechanism
:Die Roller Driven (SS 304)
Sealing system
:Rotary Sealing Jaw (SS 304)
Gear Box Unit
:Bonvario make
All product contact parts
:SS304
Bearings
:SKF /FAG makes
Optional
:Ink Coding

The FFS Liquid & Semi-Liquid Packaging Machine from IPack India is engineered for the precise and efficient packaging of liquid and semi-viscous materials into pouches or bottles. Built with advanced technology and robust engineering, this machine ensures clean filling, tight sealing, and consistent performance—making it an essential solution for industries such as food & beverage, cosmetics, chemicals, pharmaceuticals, and more.

From juices, sauces, and oils to shampoo, lotions, and disinfectants, this machine offers a flexible, high-output packaging system that boosts productivity while ensuring product integrity and hygiene.

Key Features:

Accurate Liquid Filling System: Uses piston, gear, or peristaltic pumps for precise filling of various viscosities—from water-thin liquids to thick pastes.

High-Speed Output: Capable of producing hundreds of pouches per hour, reducing labor costs and increasing production capacity.

Fully Automated Operation: Includes film unwinding, pouch formation, liquid filling, sealing, and cutting—all controlled via PLC.

Leak-Proof Sealing: Pneumatically or servo-operated sealing jaws ensure strong, hygienic seals for extended shelf life.

Material Compatibility: Works with a range of packaging films including PET/Poly, Aluminum Foil Laminates, and Multilayer Laminates.

Applications:

Juices & flavored drinks

Edible oils & sauces

Shampoo & hair oils

Detergent liquids & handwash

Liquid soaps & gels

Ayurvedic syrups & suspensions

Industrial lubricants & chemicals

Frequently Asked Questions

Here are some of the most common questions we receive about backlink outreach:

The Automatic Packing Machine can handle a wide range of products including food items beverages pharmaceuticals cosmetics and various other consumer goods.

Yes the Automatic Packing Machine is designed to accommodate various packaging materials such as pouches bags cartons bottles and cans providing versatility and flexibility in packaging options.
